Sprinkler

Process flow

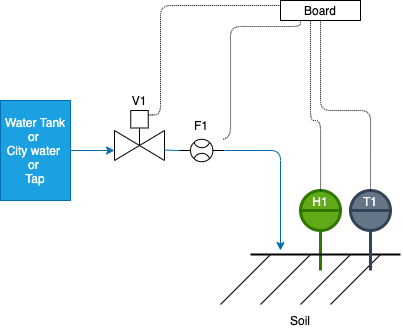

sprinkler architecture

State machine

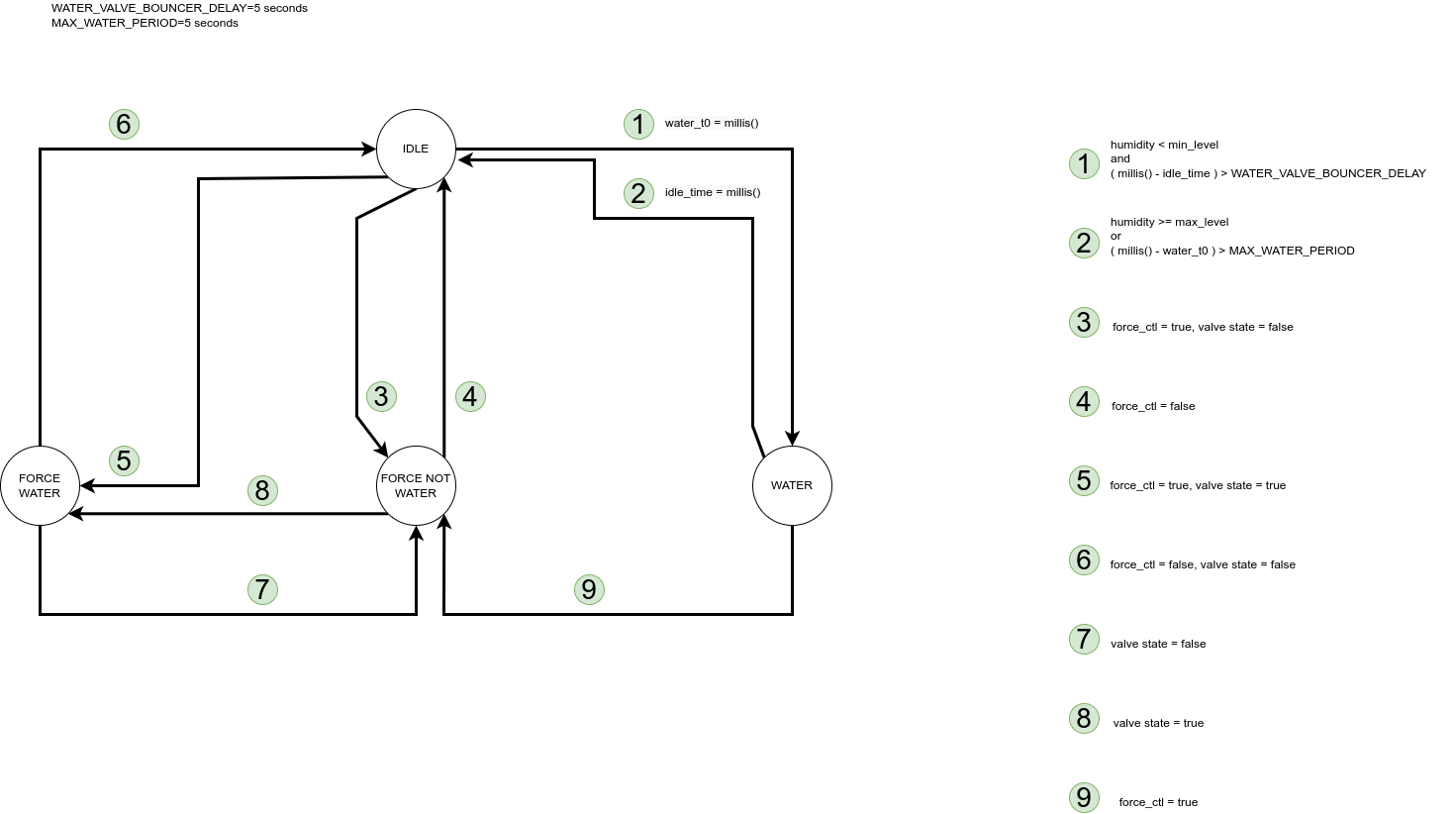

sprinkler state machine

Board

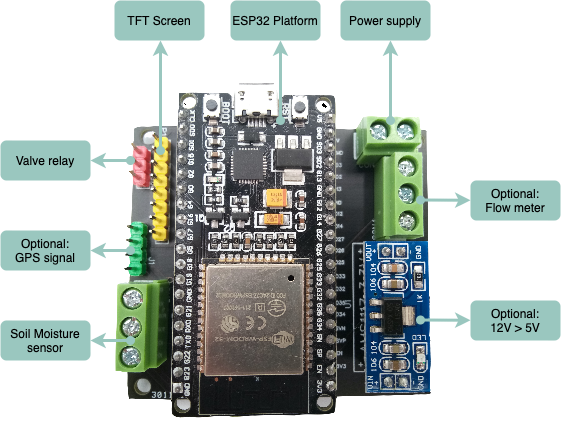

sprinkler board

Build this board

Electronic schema: https://oshwlab.com/shanisma/pk-node-sprinkler

Firmware

Code-source: https://github.com/One-Green/iot-edge-agent
